Notch Sample Cutter for High Precision Notch Preparation in Plastic, Polymer Materials, Ideal for Impact Testing Preparation

📌 Notch Sample Cutter for Impact Testing Overview

The TCQK-1 Notch Sample Cutter is designed according to international standards for preparing impact test specimens, including the simplified beam and Izod impact strength tests. This machine is specifically for creating notched samples for both cantilever beam and simply supported beam impact tests. Widely used by research institutions, universities, non-metallic material manufacturers, and quality inspection agencies. The machine features a simple structure, easy operation, and can mill one or more samples simultaneously with high precision.

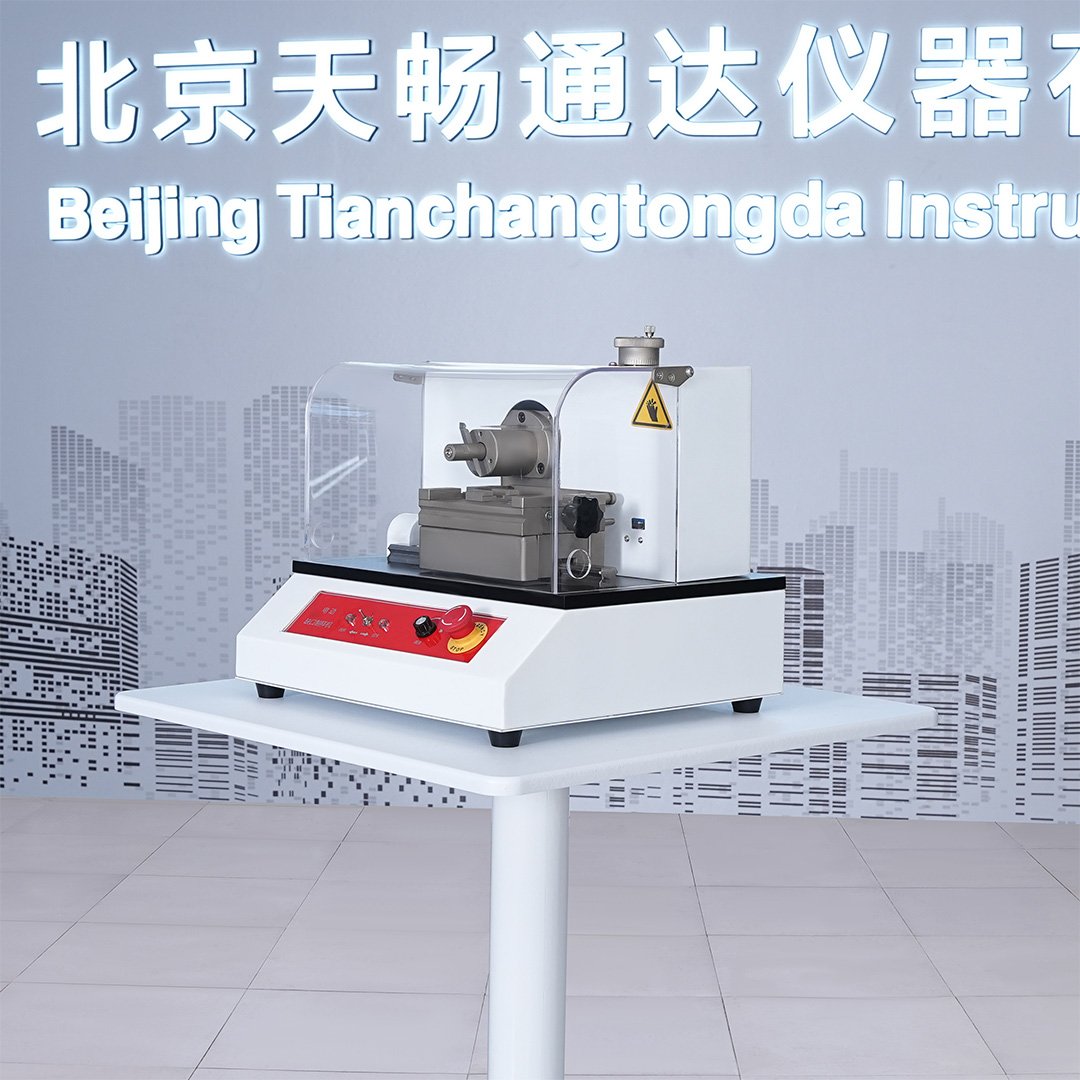

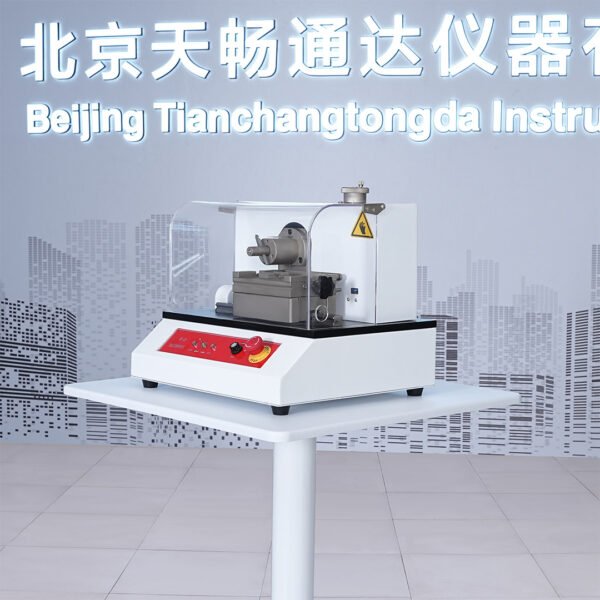

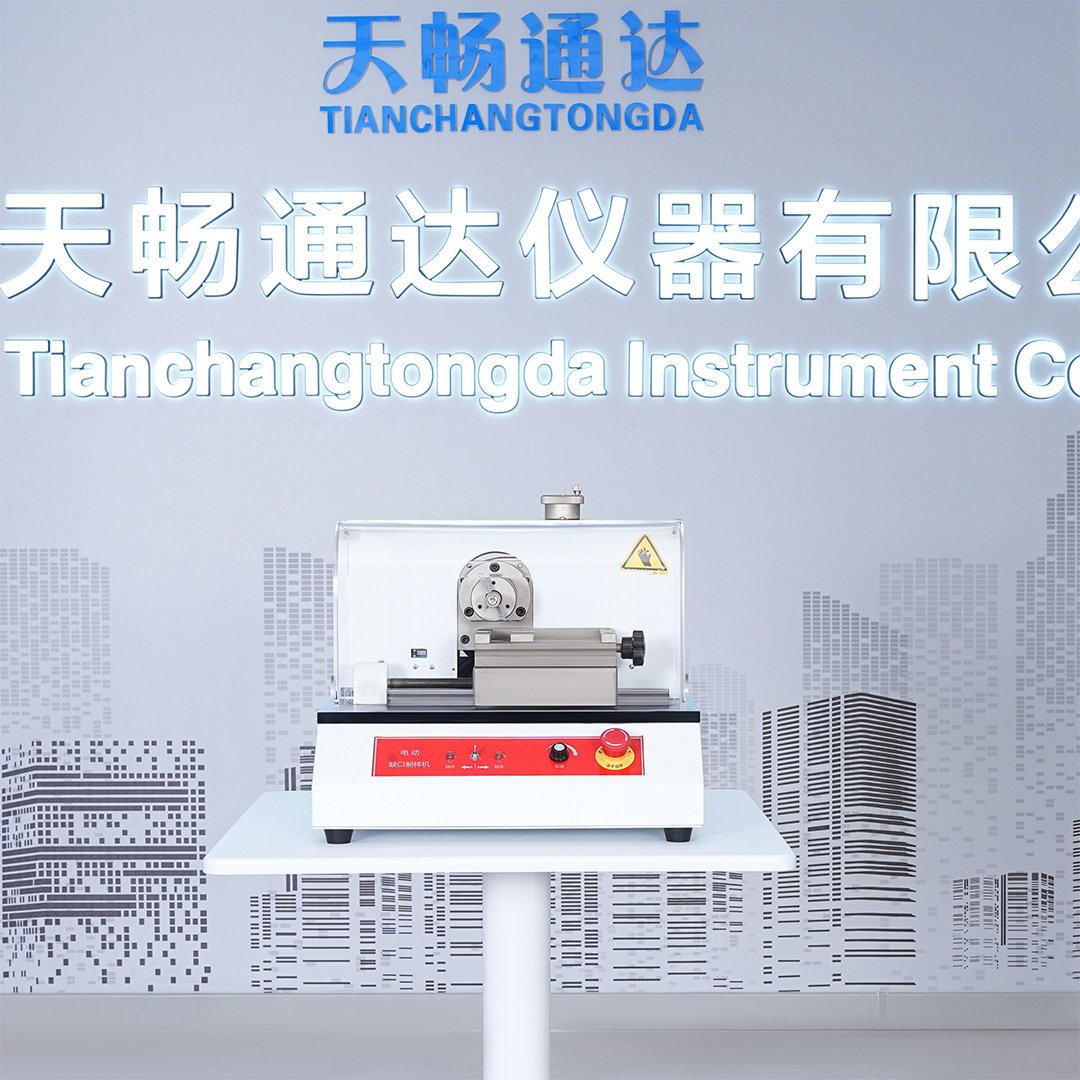

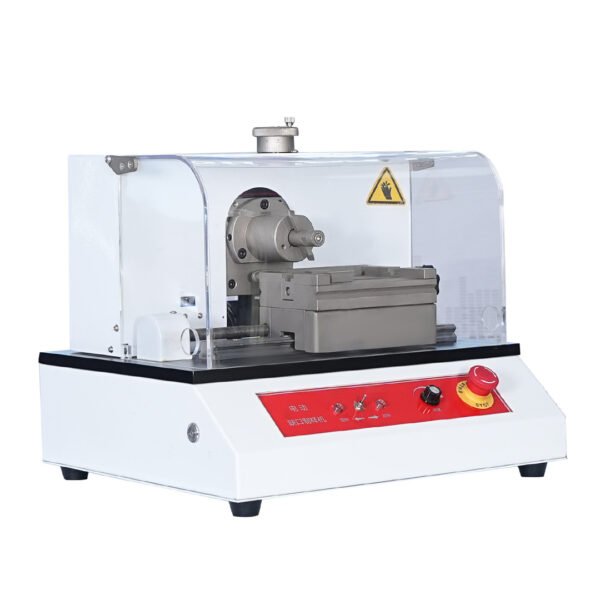

📌 Product Details & Operation Display

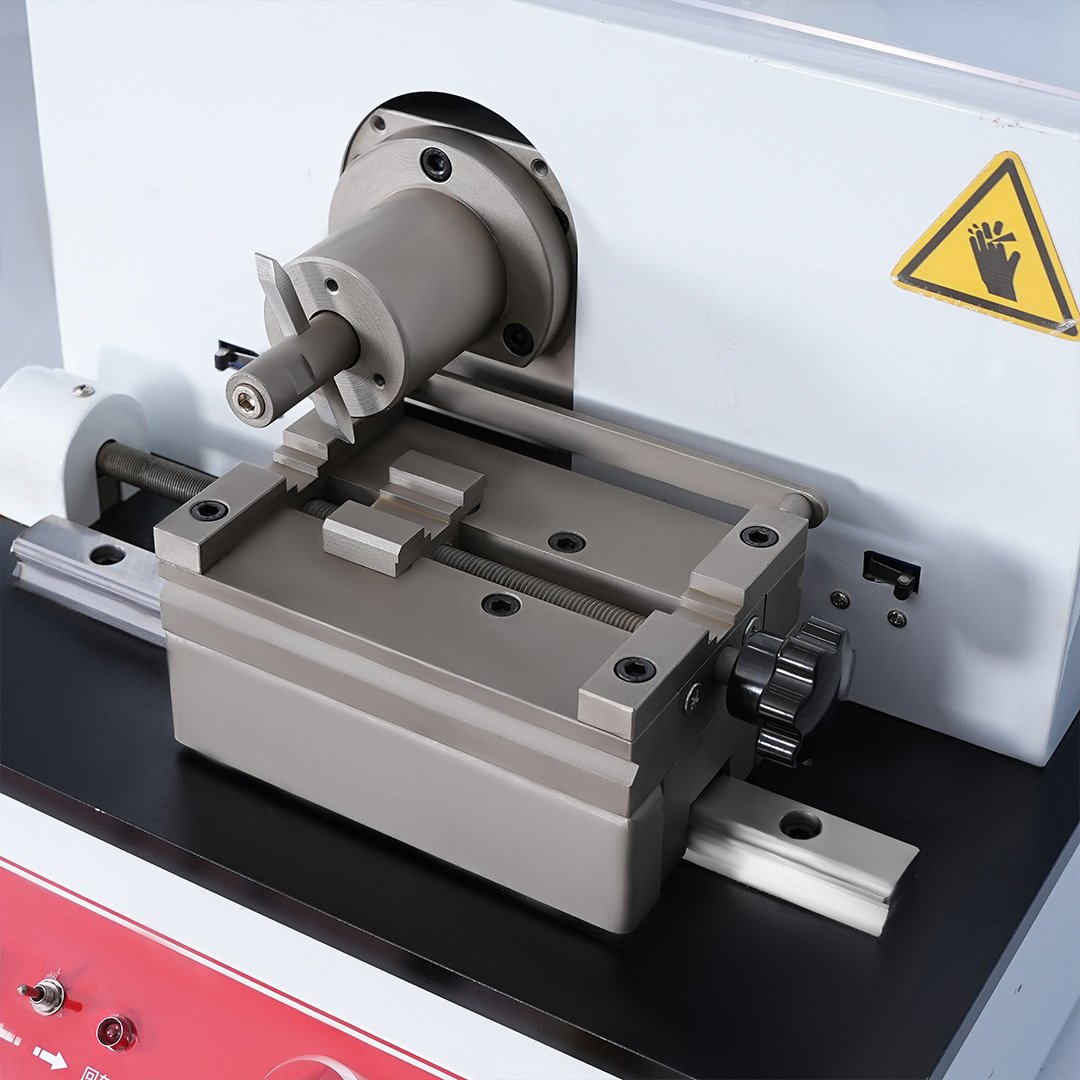

🔧 Operating Area Details

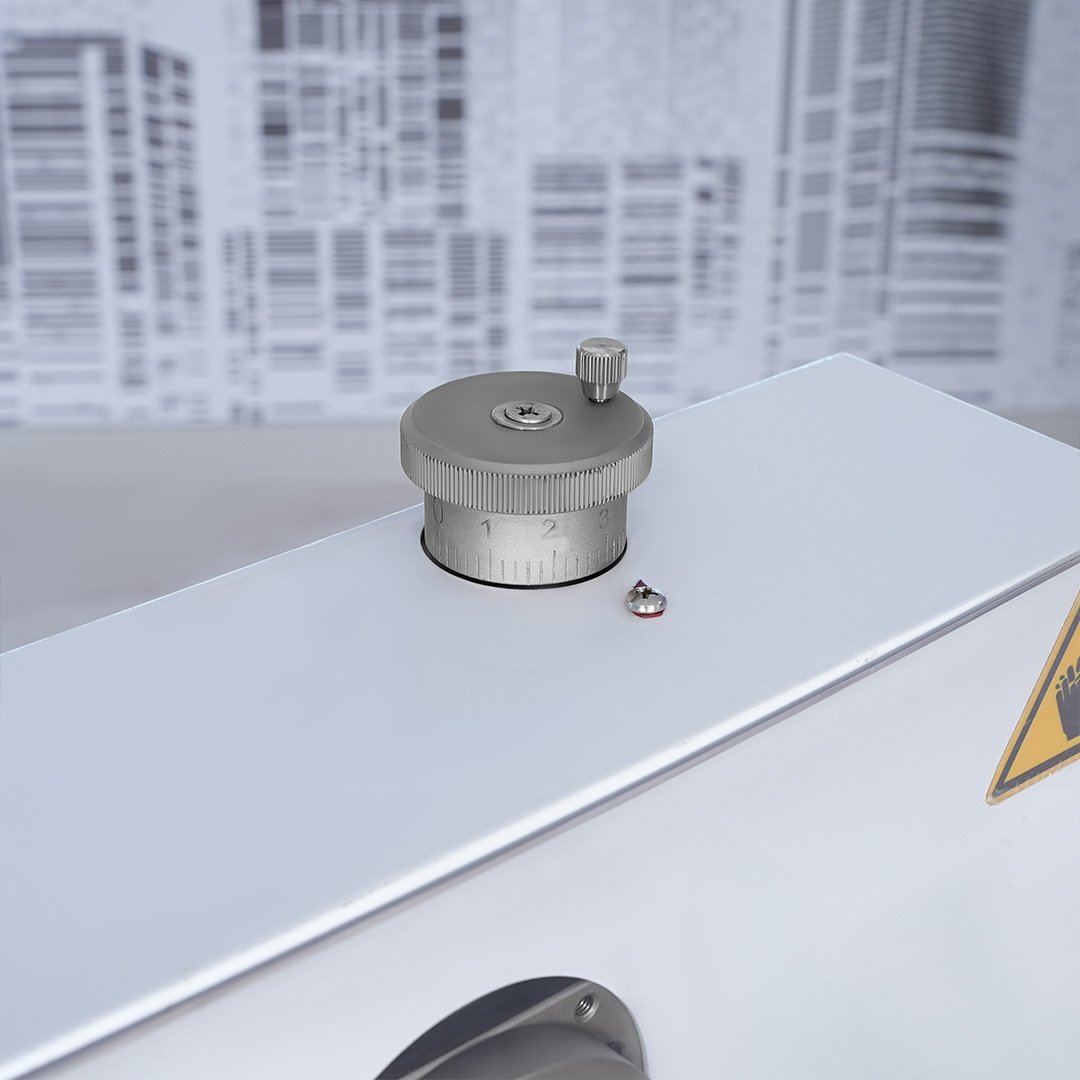

⚙️ Control Knob Details

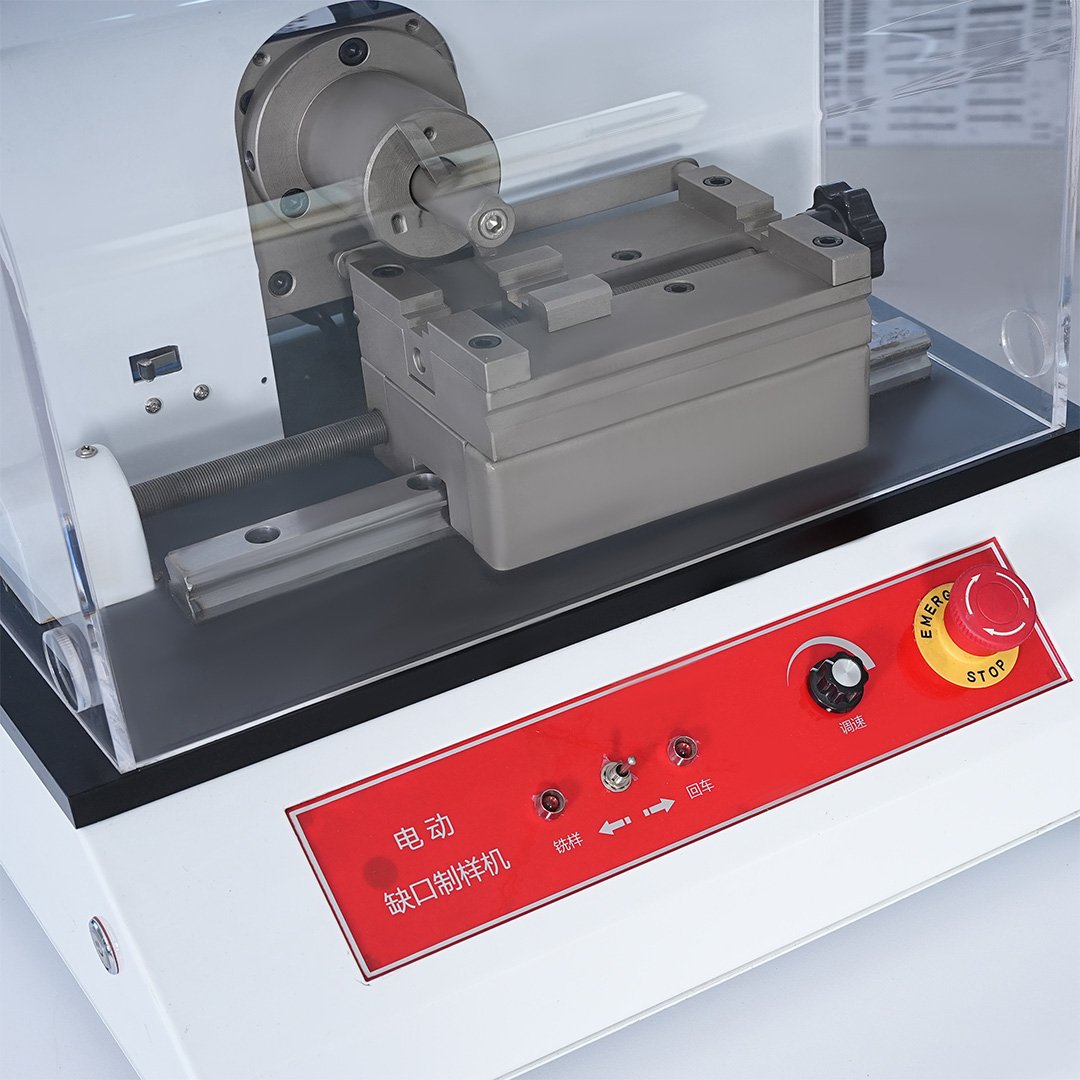

🔘 Work Area Details

⚙️ Key Features

• Clamps up to 20 samples at once for efficient processing
• Can process over 60 notch samples in 10 minutes
• Accurate notch dimensions with high efficiency, reducing operational intensity
• Electric feed and return operations for easy handling
• Comprehensive safety protection mechanism for safe operation

📊 Technical Parameters

• Dimensions: 400mm × 370mm × 370mm
• Main Unit Net Weight: 31kg
• Power Supply Voltage: 220V × (1-15%) VAC~220V × (1+10%) VAC, 50Hz, 400W (single-phase three-wire system)
• Motor Speed: 250 r/min
• Tool Stroke: 20mm
• Notch Depth Adjustment: 0–2.5mm adjustable
• Work Table Stroke: >80mm
• Sample Movement Speed: 0-70mm/min adjustable
• Single Clamp Sample Quantity (for 4mm thick samples): 20 samples
• Tool Type Parameters: Type A Tool (45° ± 0.2°, r = 0.25 ± 0.05), Type B Tool (45° ± 0.2°, r = 1.0 ± 0.05, optional), Type C Tool (45° ± 0.2°, r = 0.1 ± 0.02, optional)
