Charpy Impact Sample Notch Projector for Accurate V & U Notch Measurement, Ideal for Metal Testing Applications

📌 Charpy Impact Sample Notch Projector Overview

The CST-50 Charpy Impact Sample Notch Projector is an optical instrument designed and developed based on the actual needs of domestic users and the requirements for impact sample notches in GB/T 229-2020 «Metal Charpy Pendulum Impact Test Method.» It is specifically used to inspect the notch processing quality of Charpy V-notch and U-notch impact samples. This instrument uses an optical projection method to enlarge and project the V or U notch profile of the tested impact sample onto the projection screen. The projected sample is then compared with the standard template images of the V and U notches on the screen to determine whether the notch processing of the tested sample is qualified. The advantages of this instrument include simple operation, intuitive visual inspection and comparison, and high efficiency.

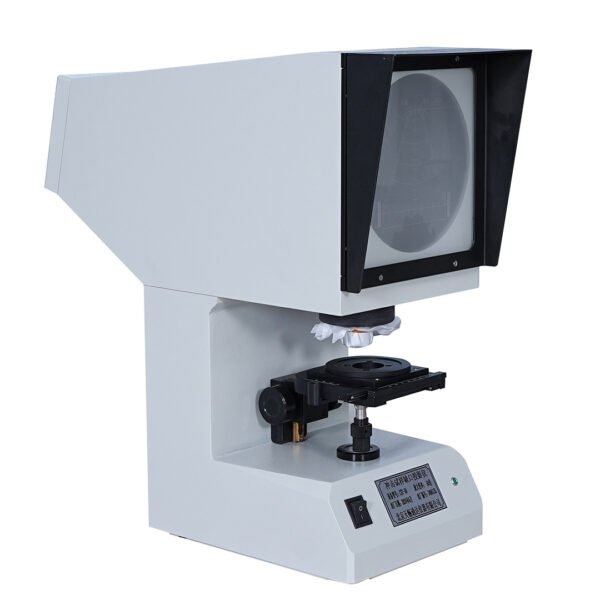

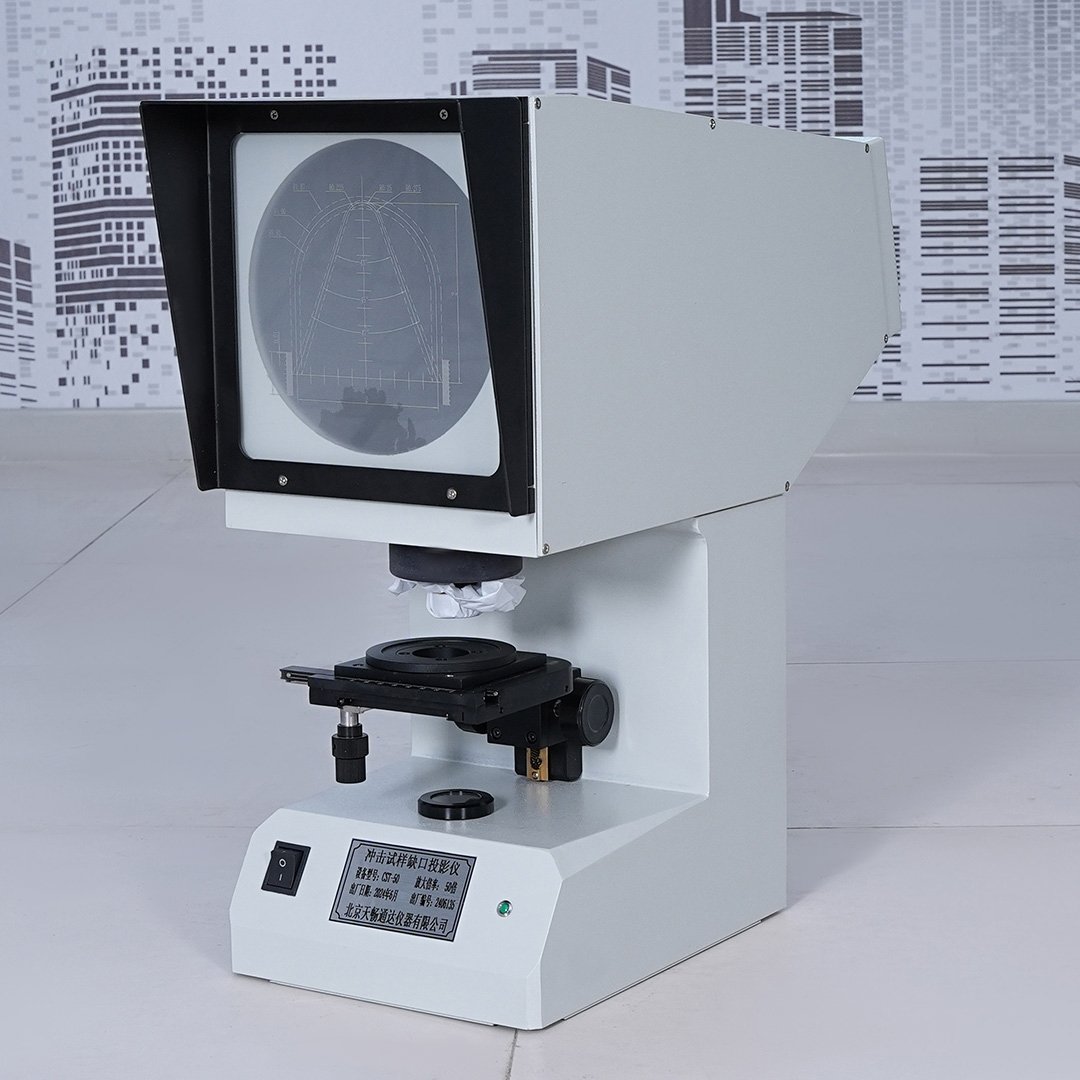

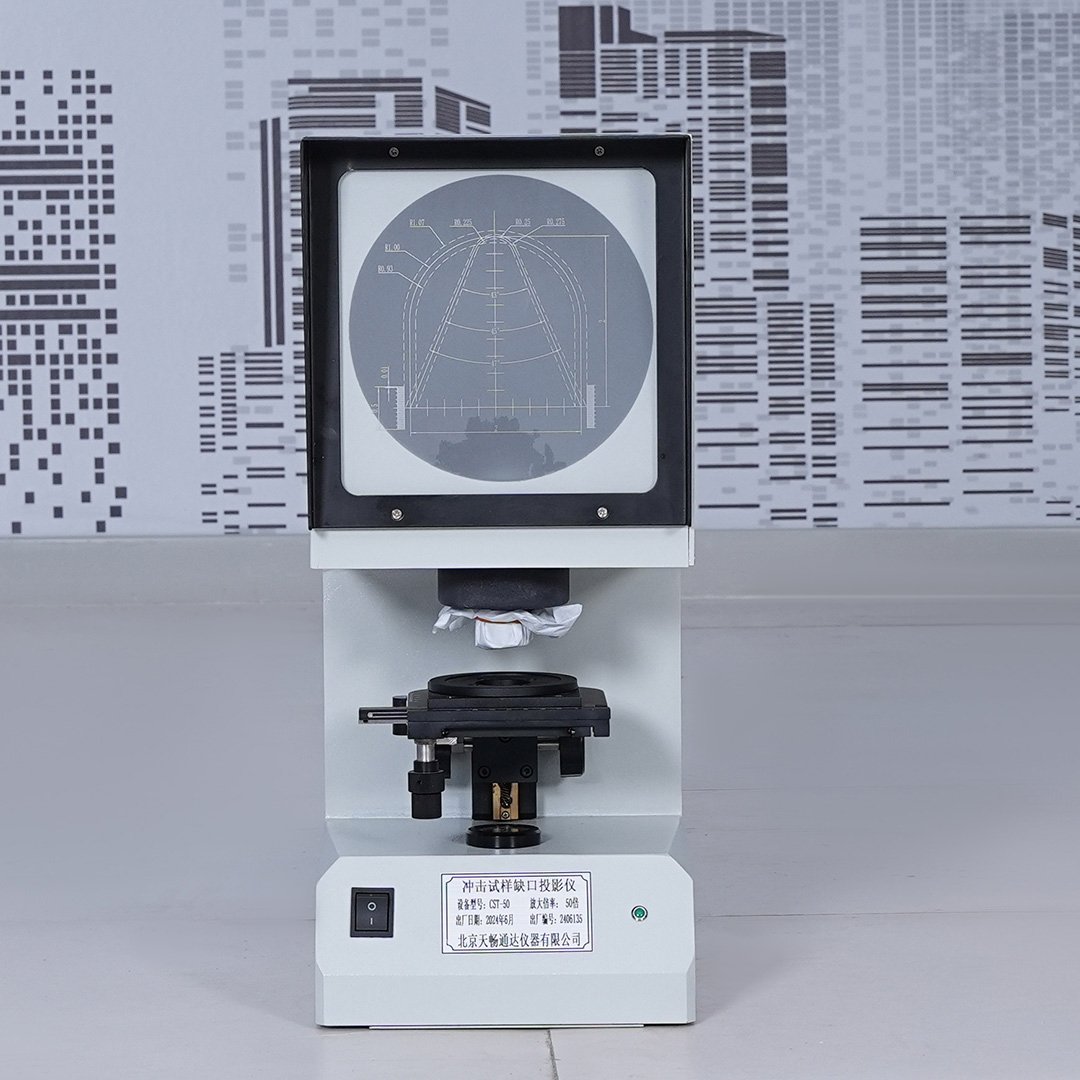

📌 Product Details & Operation Display

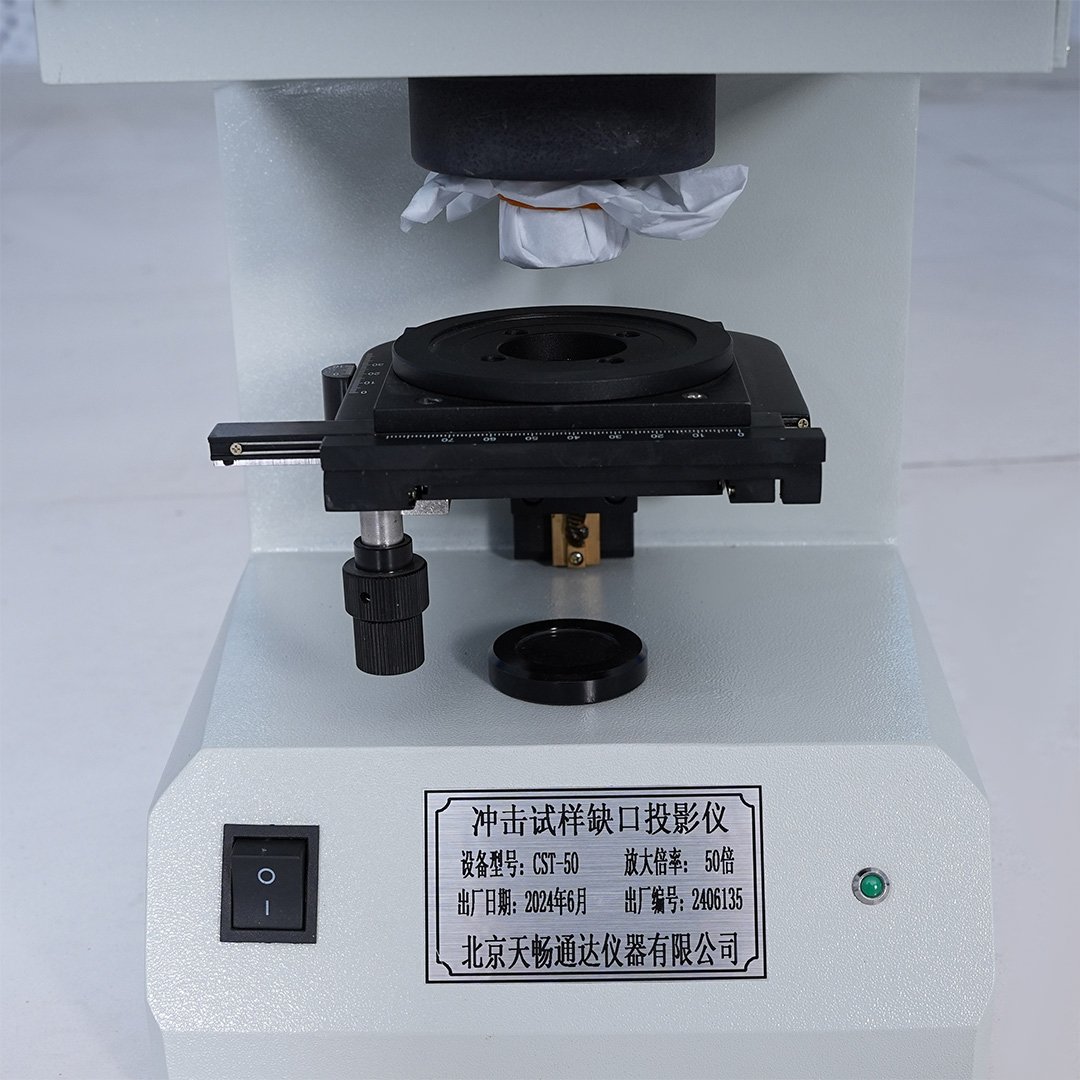

🔧 Operating Area Details

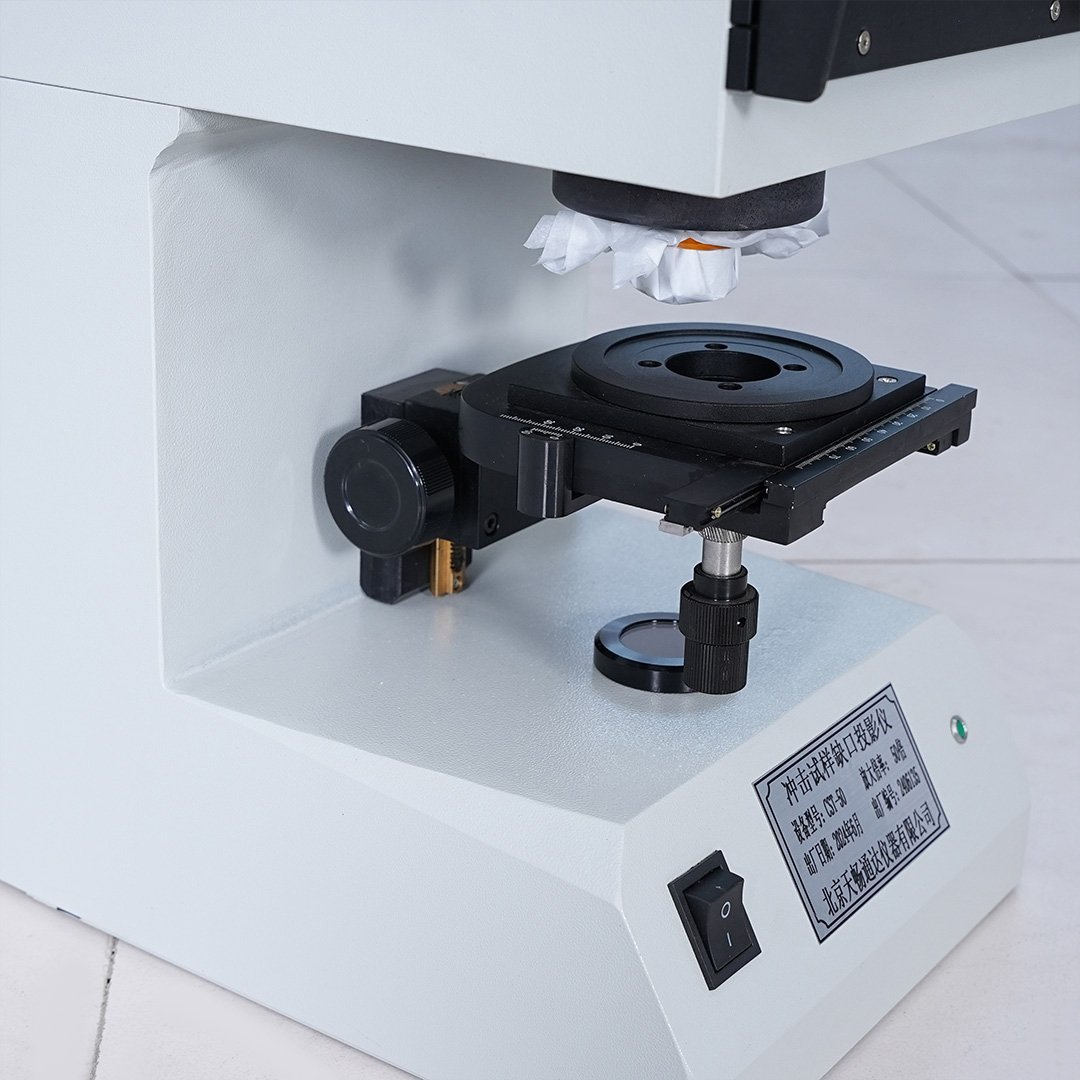

⚙️ Operation Details

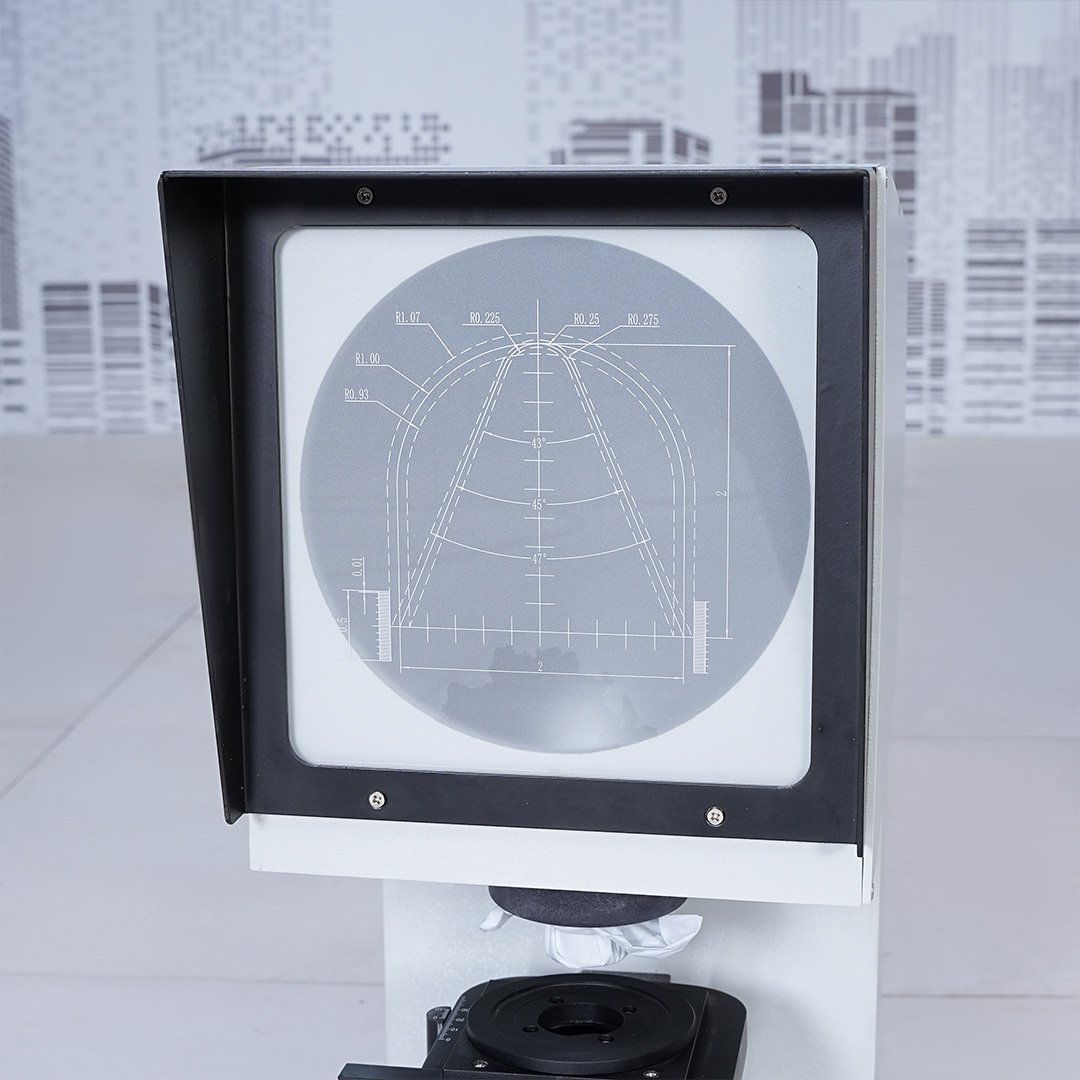

🔘 Head Area Details

⚙️ Key Features

• Accurately measures V-notch and U-notch quality of Charpy impact samples
• Simple operation with intuitive visual inspection and comparison
• High efficiency with quick comparison of sample notches
• Optical projection method for enlarging and projecting notch profiles
• Compact design with adjustable focus for easy handling

📊 Technical Parameters

• Projection Screen Diameter: 180mm
• Table Size: Square table size 110×125mm, Square table diameter 90mm
• Table Glass Diameter: 70mm
• Table Stroke: Longitudinal: ±10mm, Lateral: ±10mm, Vertical: ±12mm
• Table Rotation Range: 0～360°
• Instrument Magnification: 50X
• Objective Lens Magnification: 2.5X
• Projection Lens Magnification: 20X
• V-notch: 45°±2°, Depth: 2mm
• U-notch: Width: 2mm, Depth: 2mm
• Light Source (LED): 36V 80W
• Power Supply: 220V 50Hz
• Dimensions: 515mm×224mm×603mm
• Weight: 20kg

🔧 Main Equipment Configuration

• CST-50 Projector Main Unit — 1 unit
• Base Adjustment Knobs — 4 pieces
• Power Cable — 1 piece
• Flat Glass — 1 piece
