Carbon Black Dispersion Tester, Ensuring Quality and Accurate Performance for Polyethylene Pipes and Compounds

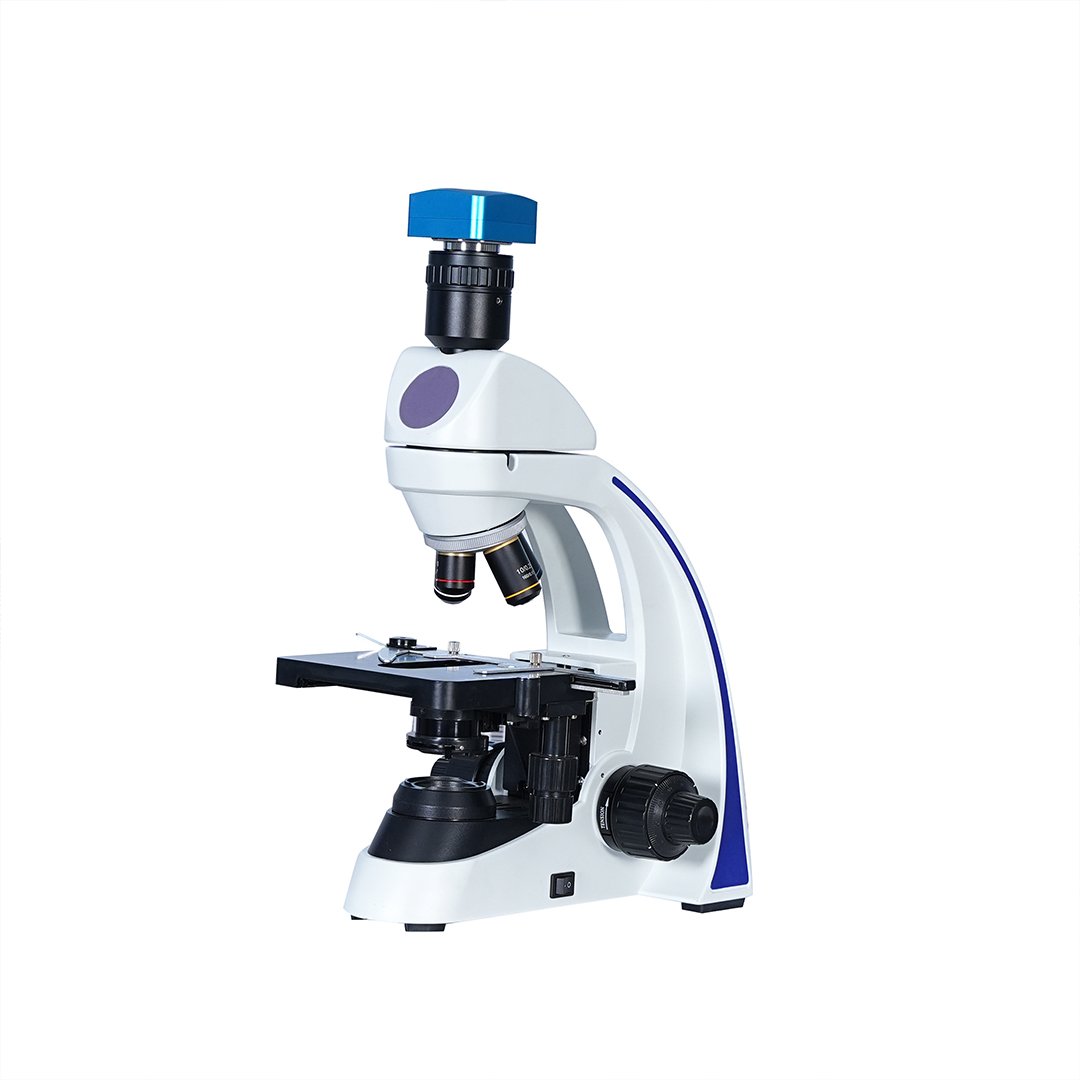

📌 Carbon Black Dispersion Tester (TC3600) Overview

TC3600 Carbon Black Dispersion Tester is a high-precision testing instrument designed in accordance with the international standard GB/T 18251-2009, specifically for evaluating the dispersion of carbon black or pigments in polyolefin pipes, fittings, and composite materials. This equipment is widely used in plastic pipe quality inspection, modified material analysis, and quality control in the polyethylene (PE) industry.

The system is integrated with the TC3600 image analysis software and a high-resolution microscope, enabling precise measurements of carbon black particle size, morphology, and distribution uniformity. Through statistical analysis of these microscopic parameters, the instrument can establish a direct correlation with macroscopic performance indicators such as tensile strength, anti-static properties, and moisture absorption rate, providing a visualized assessment of structure–property relationships.

The TC3600 supports standardized sample testing workflows, making it suitable for routine quality control in laboratories, certification analysis by third-party testing institutions, and new product validation in material R&D departments. It plays a key role in improving the consistency and reliability of carbon black dispersion in plastic products, while also supporting technical advancement and high-quality development in sectors such as pipe materials, insulation plastics, functional masterbatches, and modified polymer compounds.

In addition, the TC3600 Carbon Black Dispersion Tester plays an important role in modern material science and the polymer industry. It is not only suitable for assessing carbon black uniformity in the PE pipe industry but also widely applied in quality stability control for engineering plastics such as cable sheaths, fiber optic sheaths, underfloor heating pipes, gas pipes, water supply pipes, and drainage pipes. Through microscopic image capture and intelligent image analysis algorithms, the equipment can rapidly identify dispersion grades and output intuitive results—helping users optimize formulations and control production deviations.

As enterprises place increasing emphasis on material consistency and traceability, the TC3600—featuring high repeatability, high resolution, and support for standardized testing—has become a core tool in many material manufacturers, academic research institutions, and third-party labs. It helps users meet global quality standards and build standardized testing systems for carbon black dispersion evaluation.

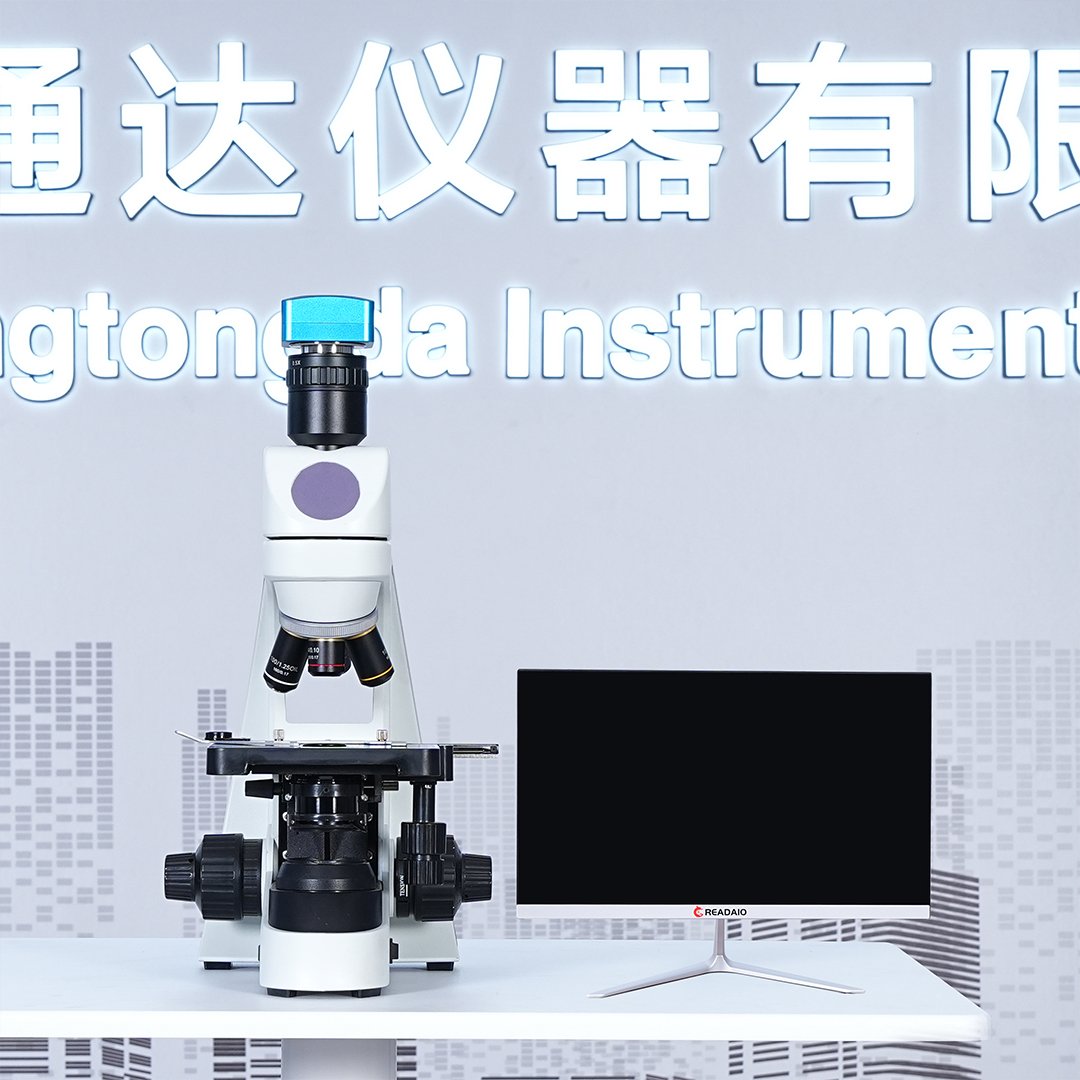

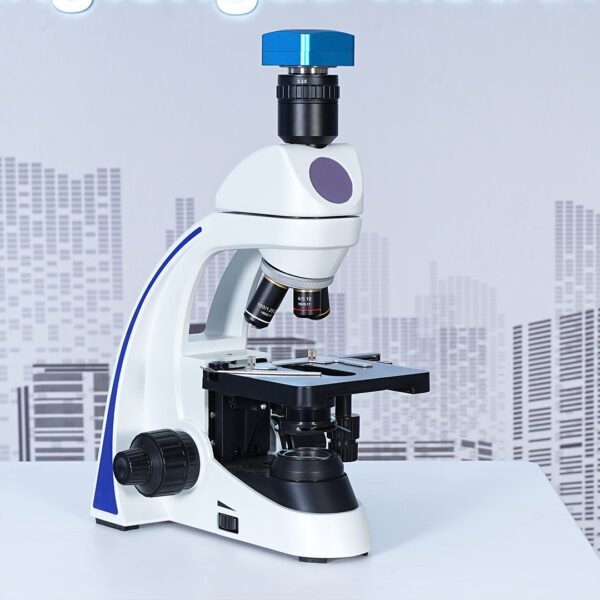

📌 Product Details & Operation Display

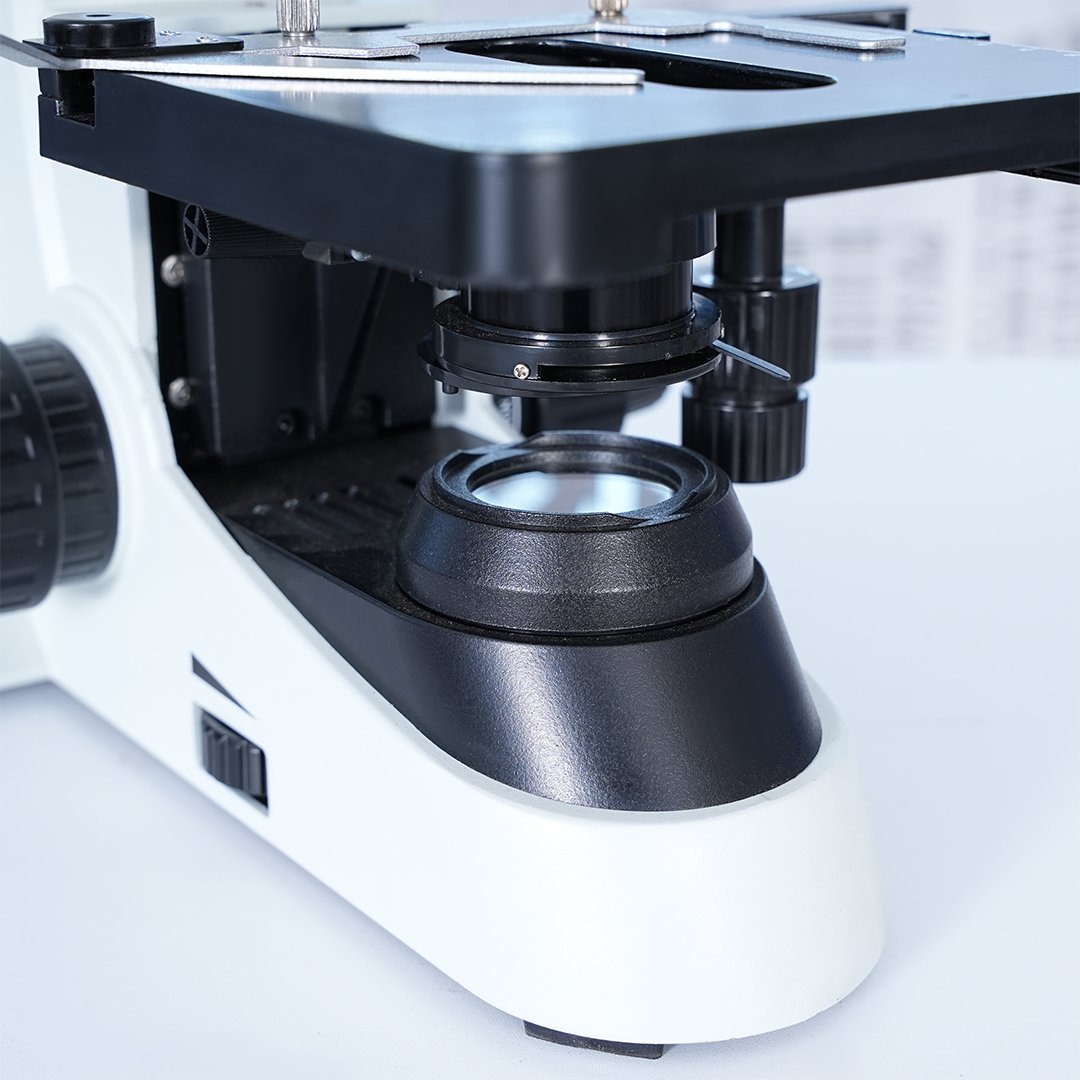

🔧 Work Area Details

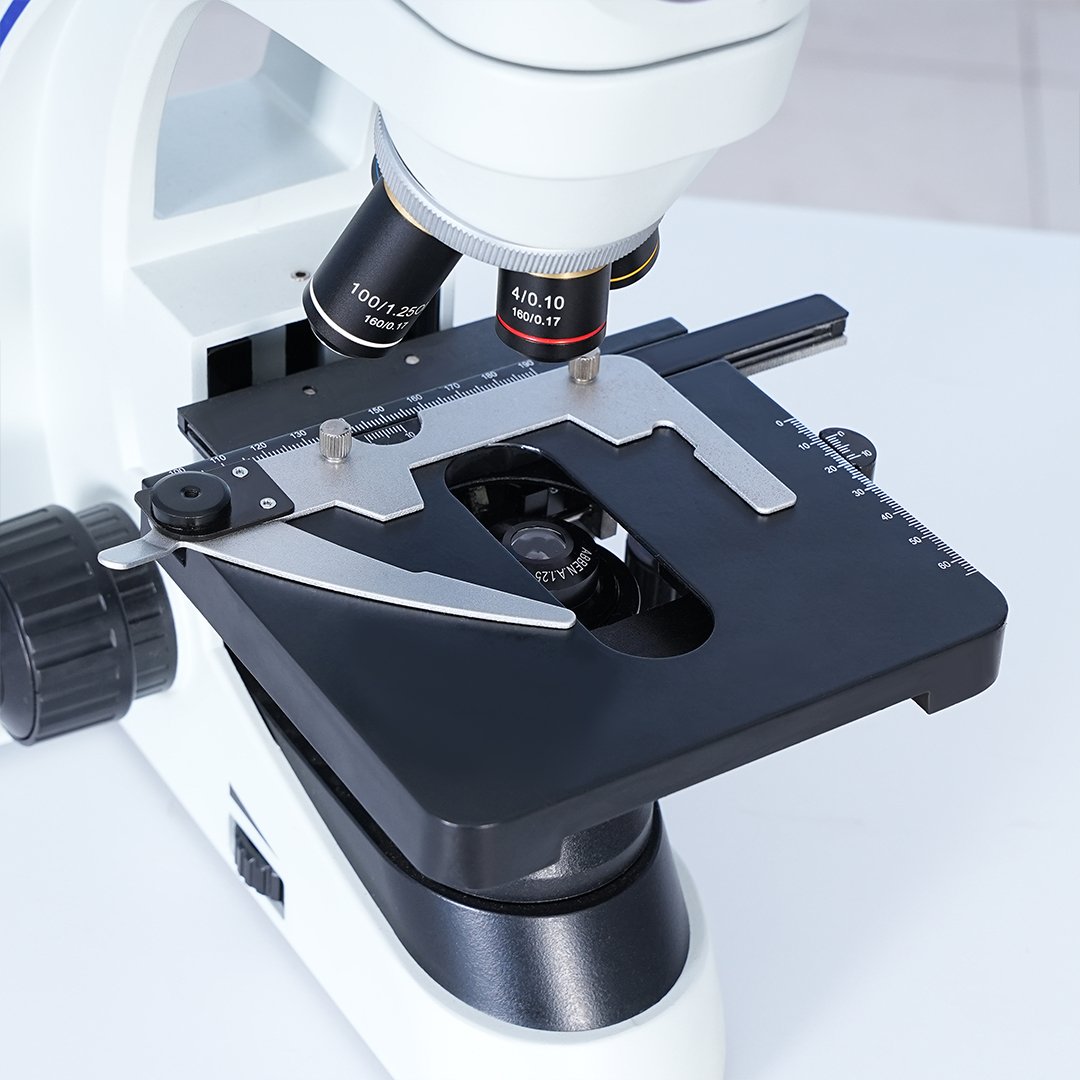

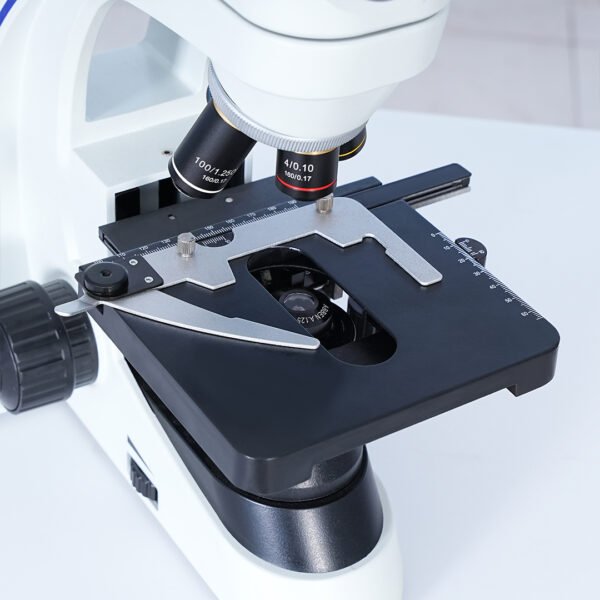

⚙️ Workbench Details

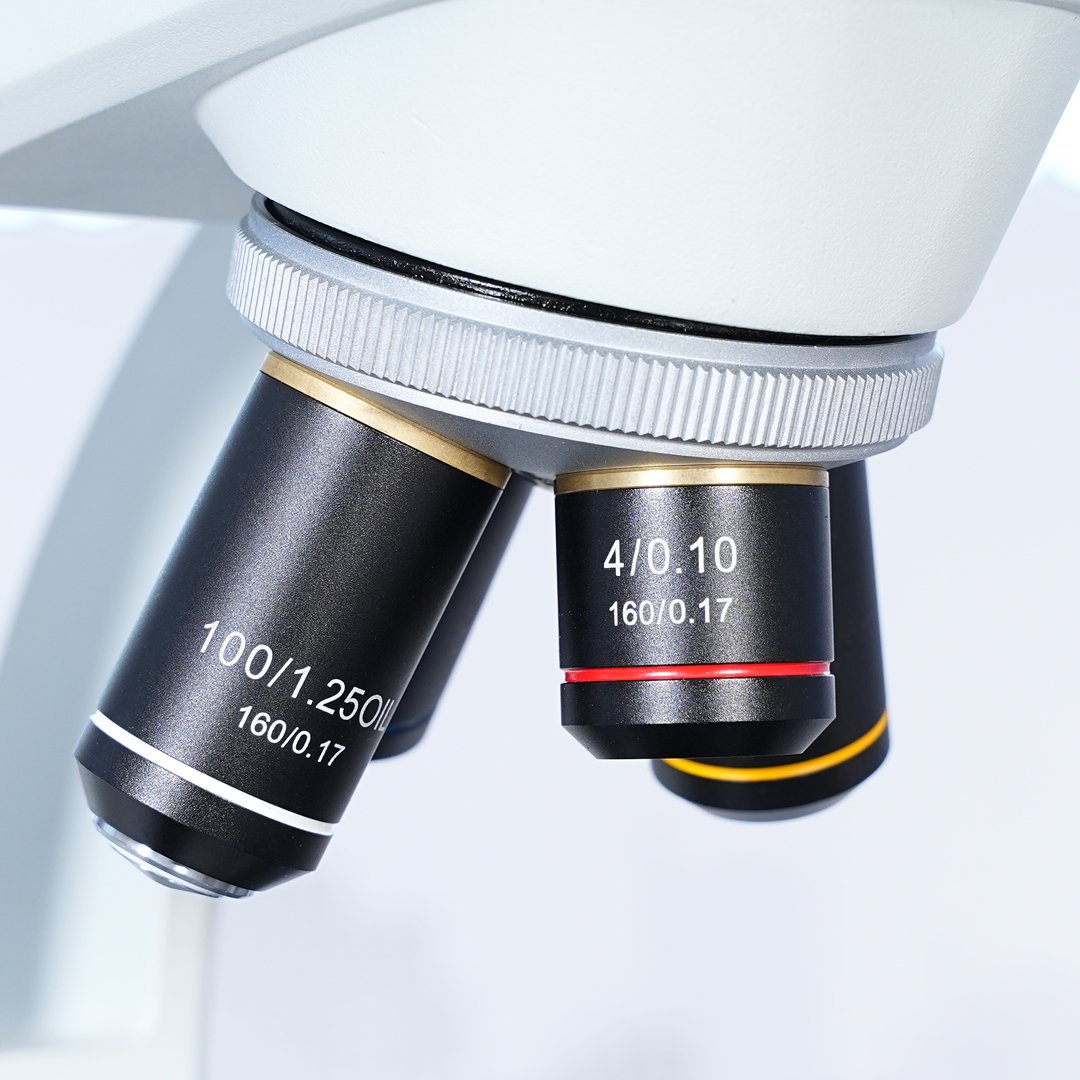

🔘 Lens Details

⚙️ Technical Parameters

• Detection Range: 0.5um—1cm
• Imaging Resolution: 2592*1944 (5-megapixel CCD digital camera)
• Optical Magnification: 100x
• Light Source Angle: 30°
• Image Sizes: 640×480, 1024×768, 2048×1536, 2592×1944
• Analysis Time: Varies slightly depending on the selected image size
• Instrument Power Supply: 220V / 2A / 50Hz
